Embankment Staircases

GRP Embankment Staircases

There’s no such thing as ‘standard’ Embankment Staircases. The slopes between road and track are usually steep and uneven, requiring a creative approach to access staircase design. Mid-flight platforms and safety gates are essential to ensure that even in the event of a fall, nobody ends up on the track.

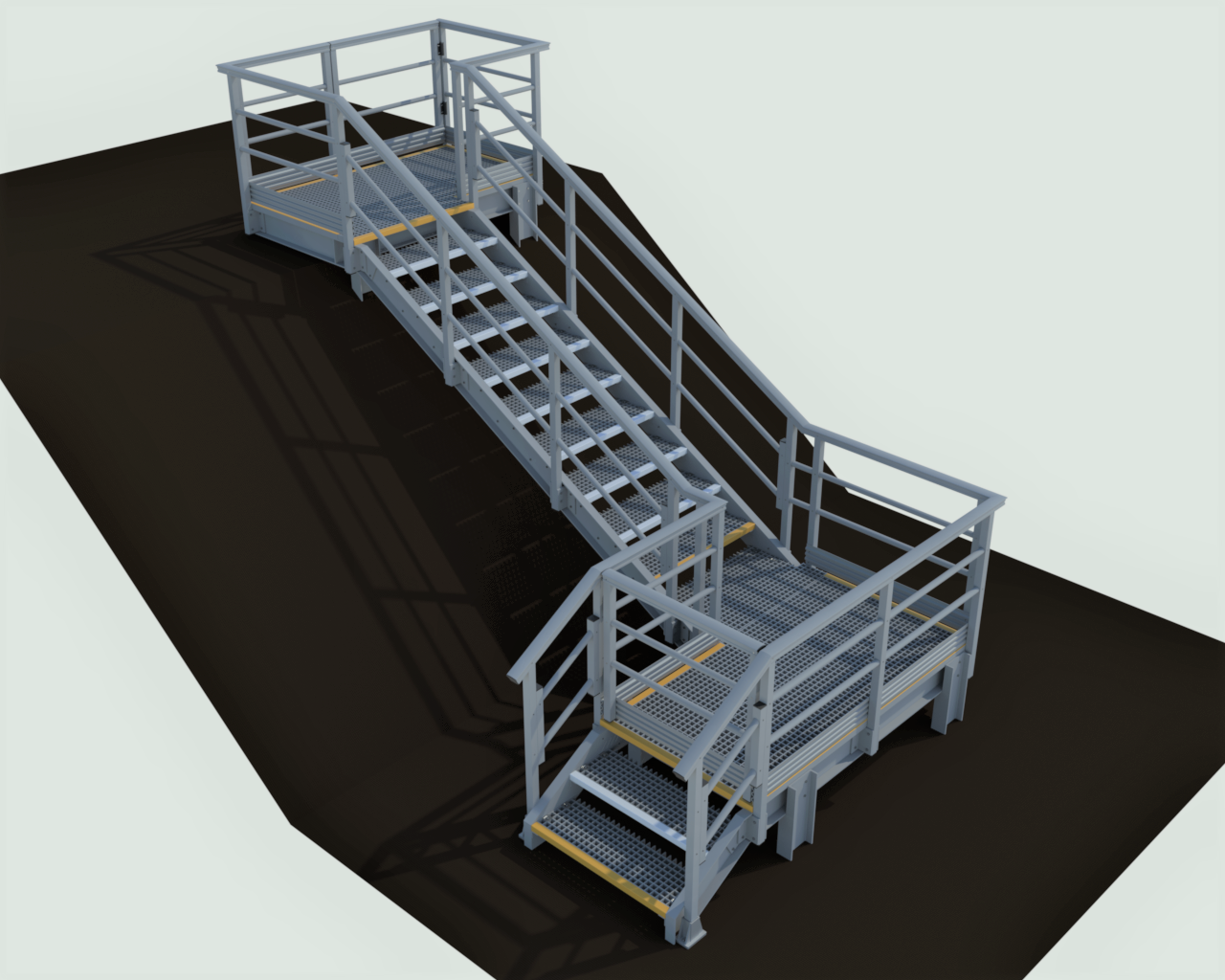

Starting with careful site surveys, the Step on Safety CAD Engineers put together designs that meet all the NWR specifications. Continuous GRP Handrail, anti-slip mesh flooring and contrasting stair nosing are included as standard with additional safety features such as self-closing gates available as required. Many Rail Access Points have been untouched for years – the rotten wooden steps are slippery and uneven, making even basic track maintenance a challenge to undertake.

Embankment Staircases are fabricated in our Suffolk workshop before being supplied in sections to the location. We then either install them ourselves or ensure the easy-to-assemble sections can be positioned and fixed down by the onsite contractors. GRP is the ideal choice for Rail Access Points, combatting the inherent issues associated with traditional materials. It is lightweight, high-strength, non-conductive, non-corrosive, non-sparking and fire resistant which is key in this particular environment.

Choosing GRP to build an embankment staircase over the steel, timber or concrete alternatives provides extraordinary benefits:

  • Zero maintenance throughout 50+ years life expectancy
  • Non-sparking and non-conductive
  • Anti-slip even in wet, icy or oily conditions
  • Flexible, bespoke approach to each location
  • Meets or exceeds all NWR specifications

We have now supplied over 300 GRP Embankment Staircases across the UK – many to the QTS Group who has installed them on behalf of Network Rail across Scotland. You can see a time lapse video of QTS installing one of our embankment staircases below. The Welsh railways are also being worked on with old, rotten wooden steps being replaced by Collis Engineering.

We also provide End of Platform Steps to provide safe access within a station.

Embankment Staircases case studies

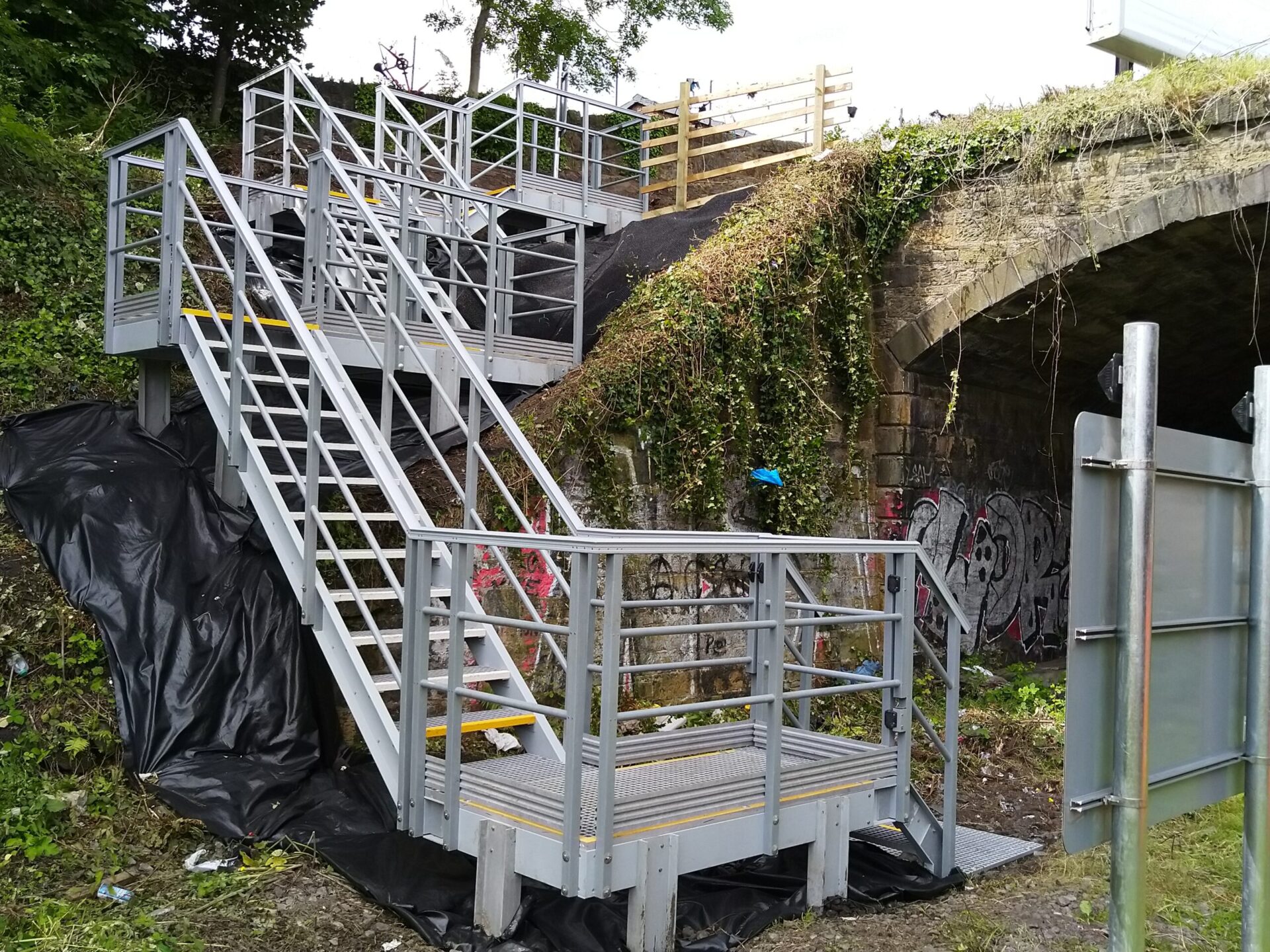

Craigentinny Embankment Stairs

The staircase at Craigentinny needed to provide almost vertical access going from the road down to the track, landing by a small, brick-built bridge

Craigentinny Embankment Stairs

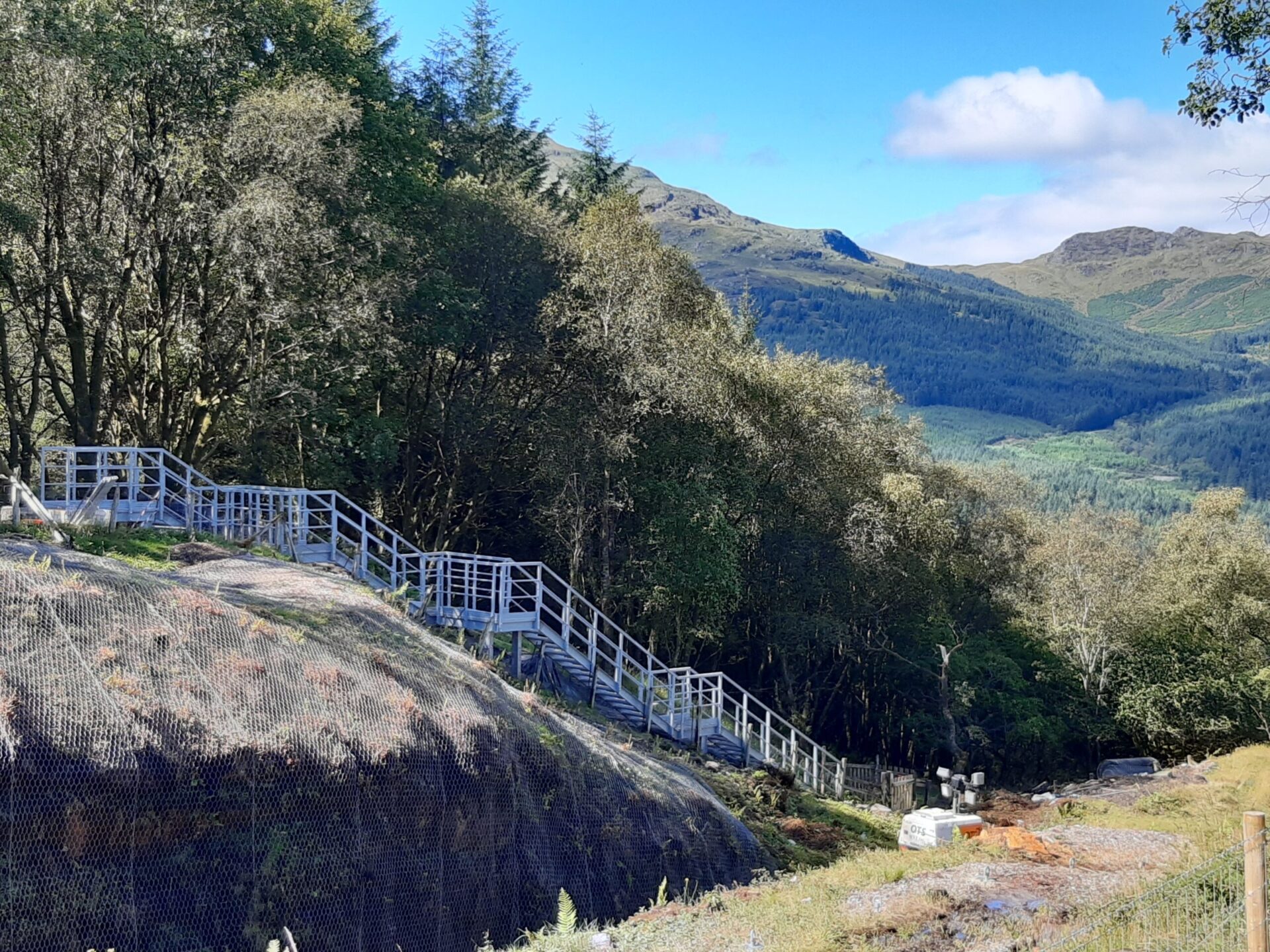

Glendouglas Embankment Staircase

Careful consideration is required of the site topography for locations of the access point when designing an embankment staircase

Glendouglas Embankment Staircase
Rail Industry icon
Rail Case Studies
Stonehaven Access Stairs Stonehaven Access Stairs

Stonehaven Access Stairs

Take a look at the completed Embankment Staircase at Stonehaven, Carmont.

Stonehaven Access Stairs
