Introducing LitePost – an exclusive new sign post system that doesn’t require costly and time-consuming concrete works.
Constructed from zero-maintenance GRP with stainless steel bolts, they are held securely in place by the ballast or soil they sit in, eliminating the need for a concrete anchor. LitePosts are available in configurations to suit low-level and high-level signage, SPTs and small electrical equipment housings.
- No concrete
- No spoil removal required
- No plant/lifting equipment
- Reduces installation time
- Reduces construction risks in third rail and OLE areas
- No scrap value
- Can be reused
How to install LitePost
Step 1: Dig a hole
Dig a hole deep enough and wide enough to take the base and fins. This can be in ballast, soil or mixed aggregate. Position the LitePost
Step 2: Backfill the hole
The weight of the ballast will hold the post down while the fins prevent it from twisting. And you can dig the post out to re-use later.

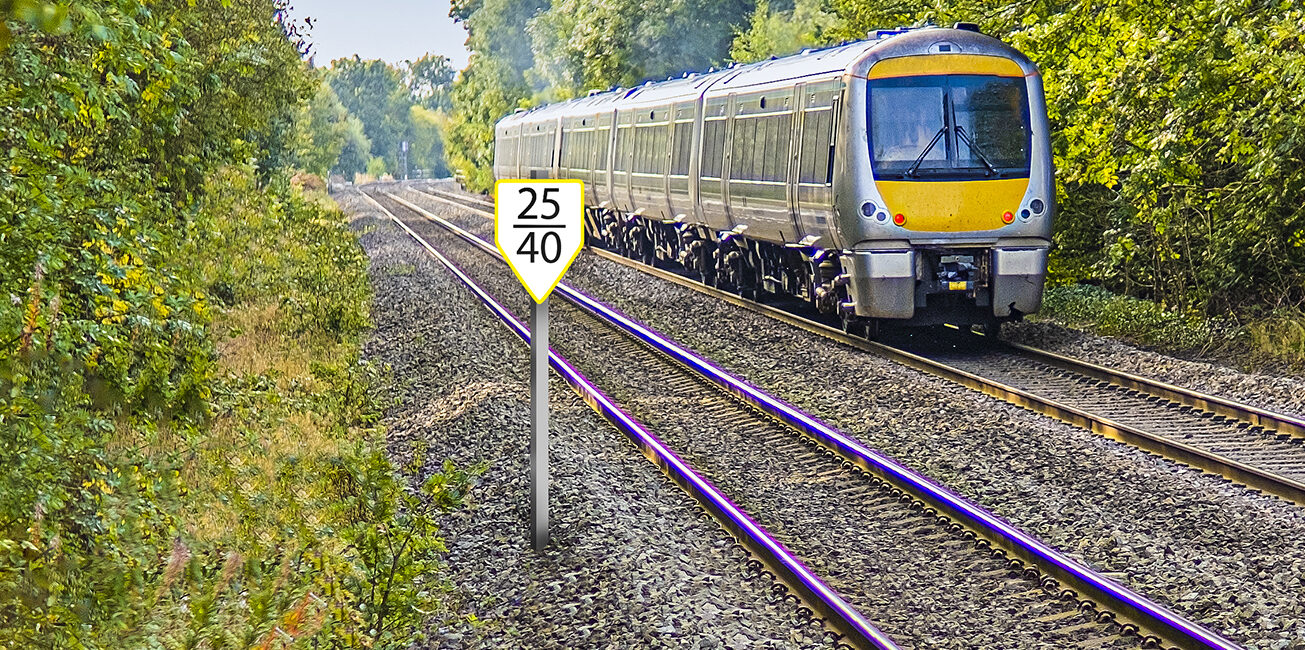

Currently available in two standard sizes, Step on Safety’s LitePost System is suitable for use beside tracks and on road or rail embankments.
|Max height above ground||1000mm||2400mm|
|Base dimensions||400 x 400mm||400 x 400mm|
|Minimum hole Depth||600mm||1000mm|
