QuartzGrip® Standard Mesh Grating

QuartzGrip® Standard Mesh Grating

QuartzGrip Logo
  • QUALITY ASSURANCE
  • CHEMICAL RESISTANT
  • SLIP RESISTANT

The original GRP Open Mesh Floor Grating, suitable for use in commercial and industrial environments, including walkways, riser floors, platforms, wash bays, work stations, drains, gullies, stairs, ramps and pontoon decking. Stocked in a wide range of sizes and colours.

Read full description

Clear

From £144.61 (exc VAT)

Any questions? Contact us

Description

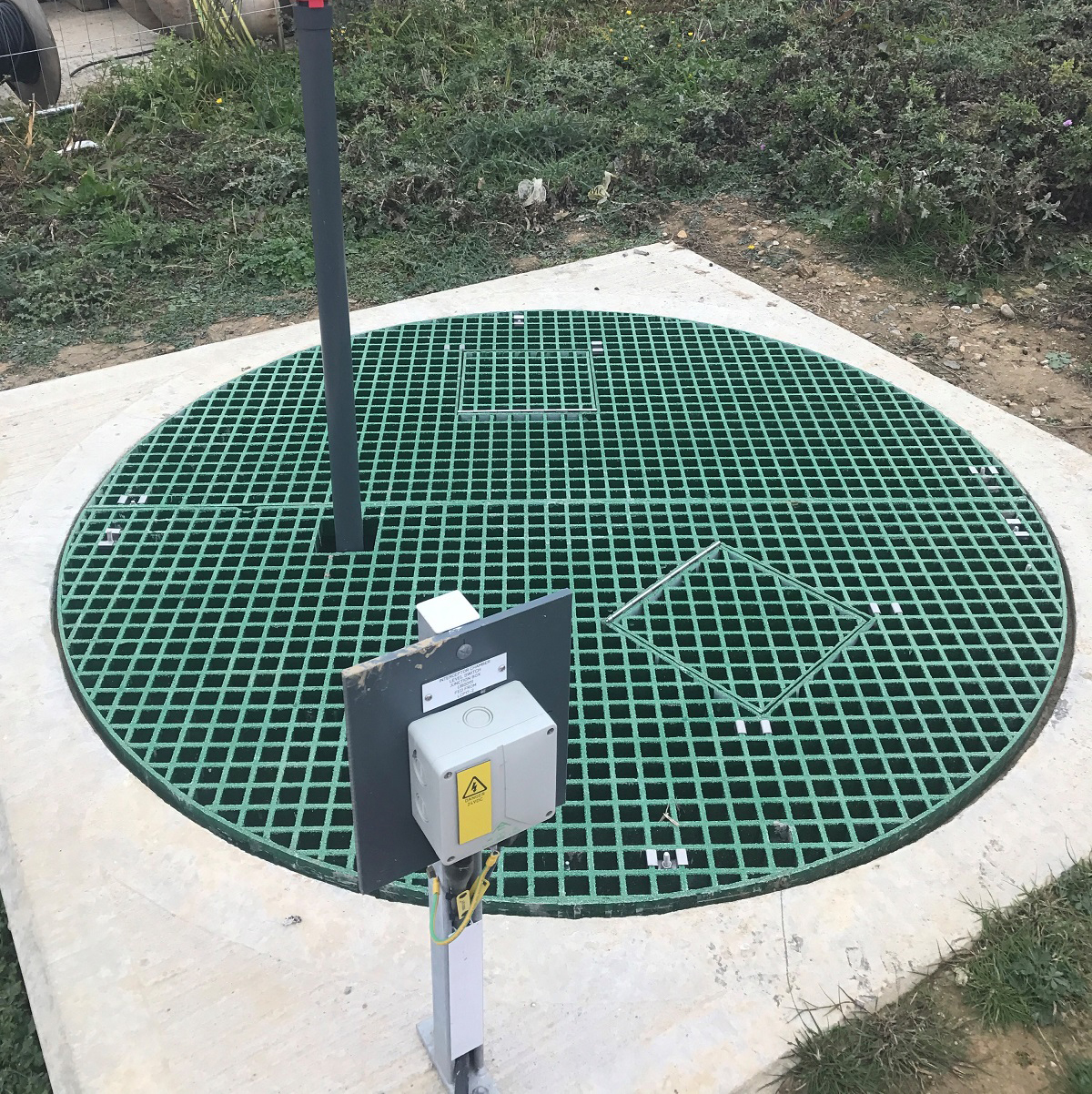

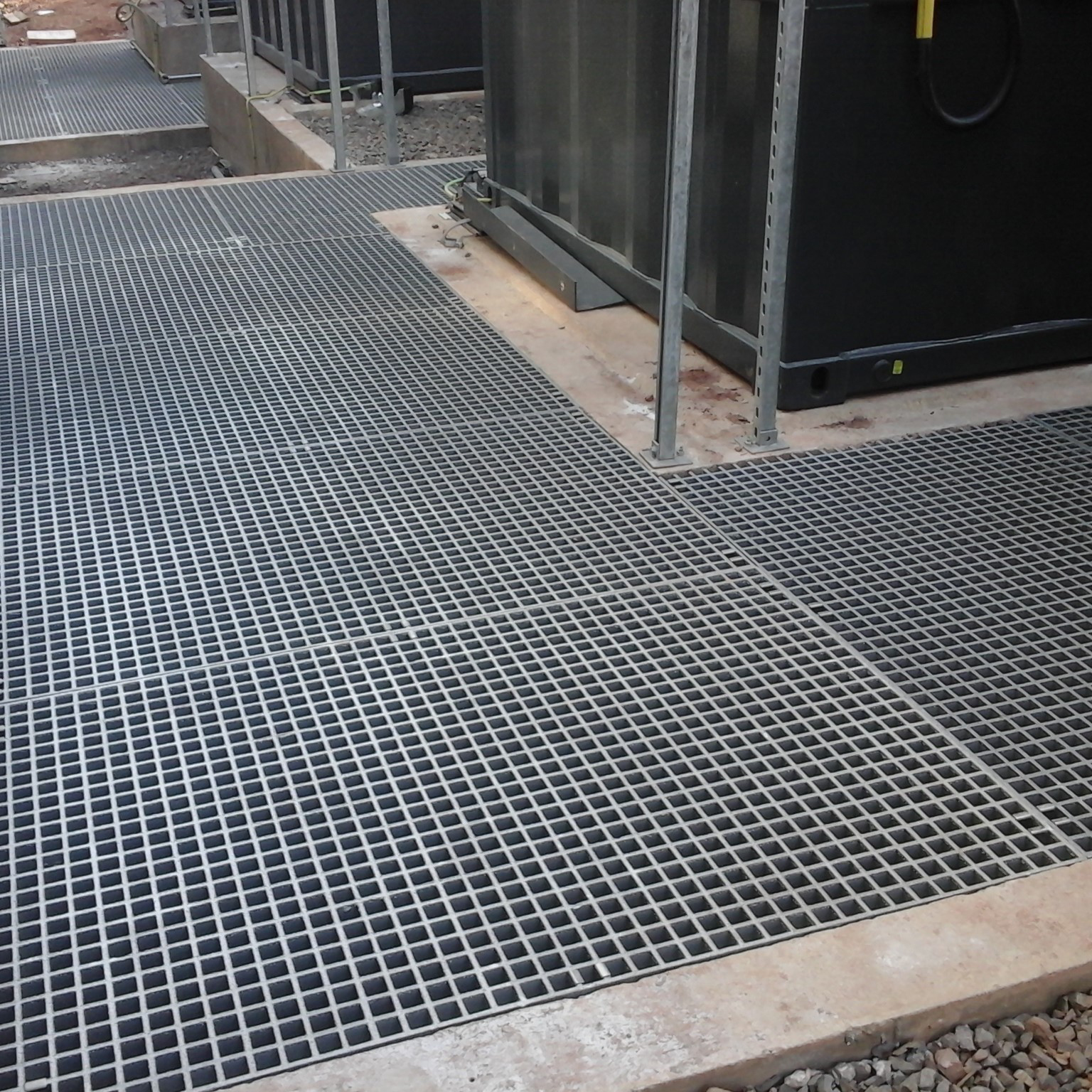

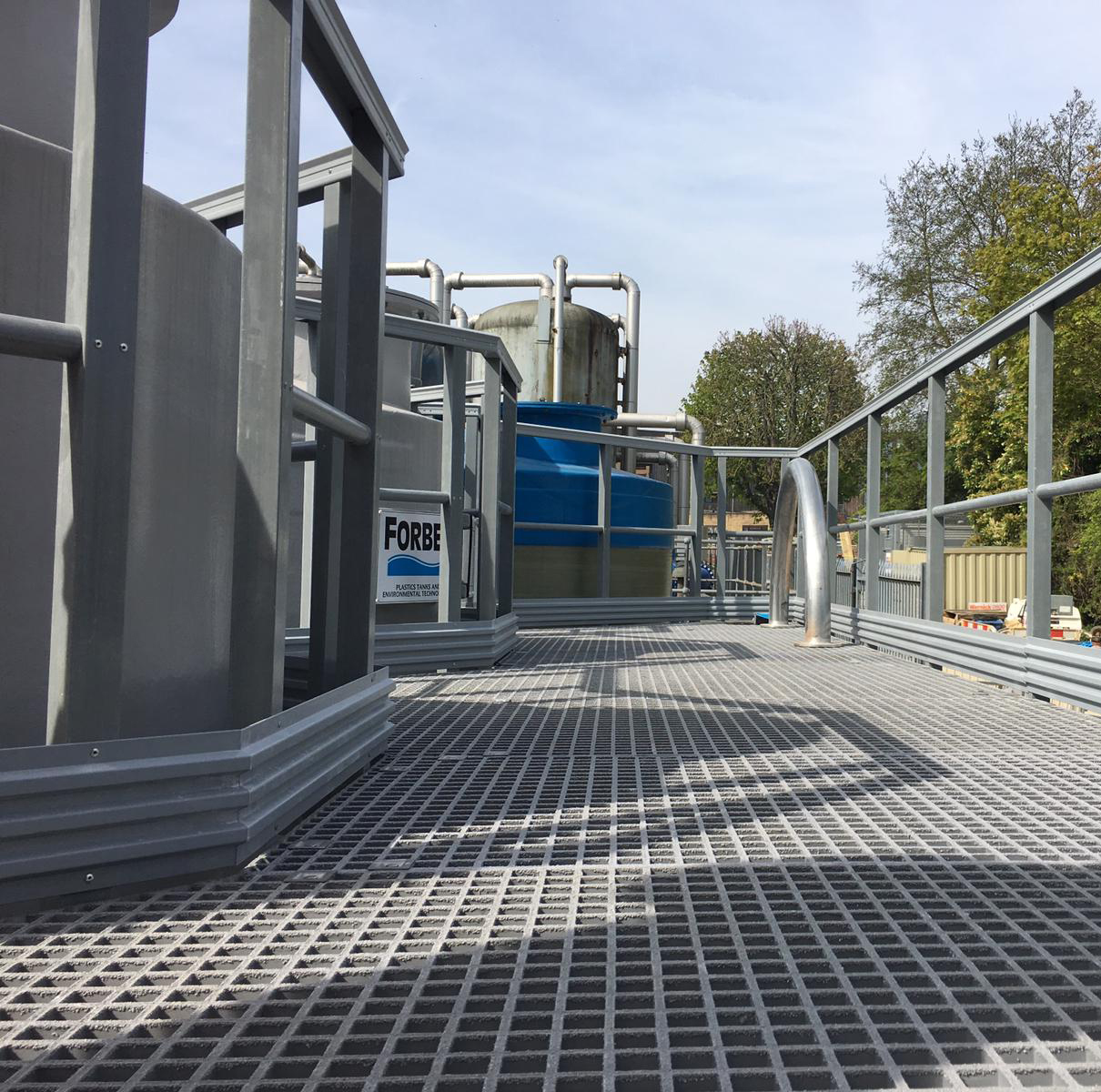

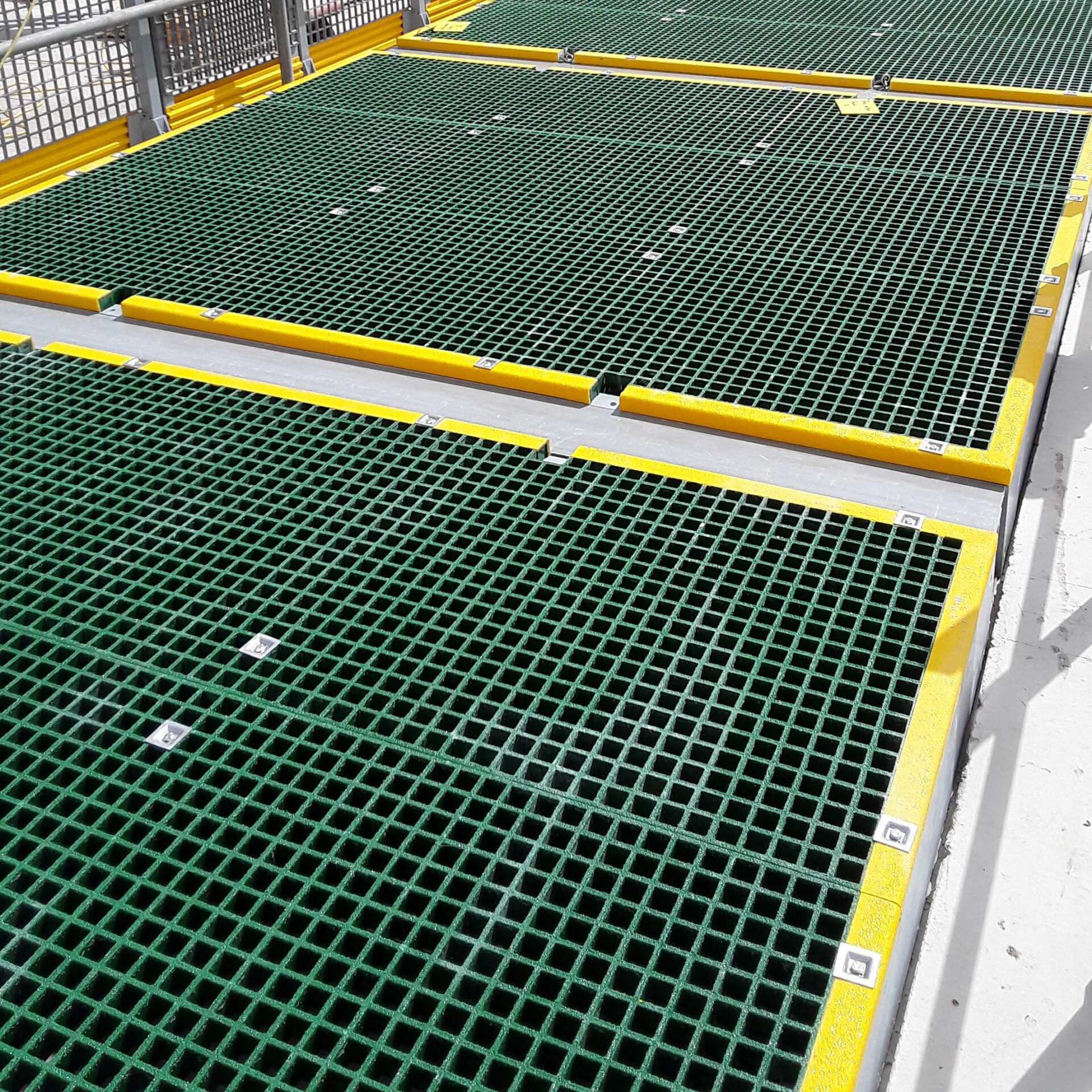

QuartzGrip? GRP Open Mesh Floor Grating helps prevent slips, trips and falls in hazardous commercial and industrial environments, including walkways, platforms, wash bays, work stations, stairs, ramps and pontoon decking. GRP Open Mesh Grating can also be used for sump-covers, pit, pond, drain, gully and well covers and service riser floors.

QuartzGrip? fibreglass mesh panels provide greater corrosion resistance than galvanised steel products and lower costs than stainless steel products.

QuartzGrip? GRP Open Mesh Grating is:
  • Corrosion-resistant
  • Maintenance-free
  • High-strength and durable
  • Lightweight and easy to install
  • Anti-slip, even in wet or icy conditions
  • Long-lasting

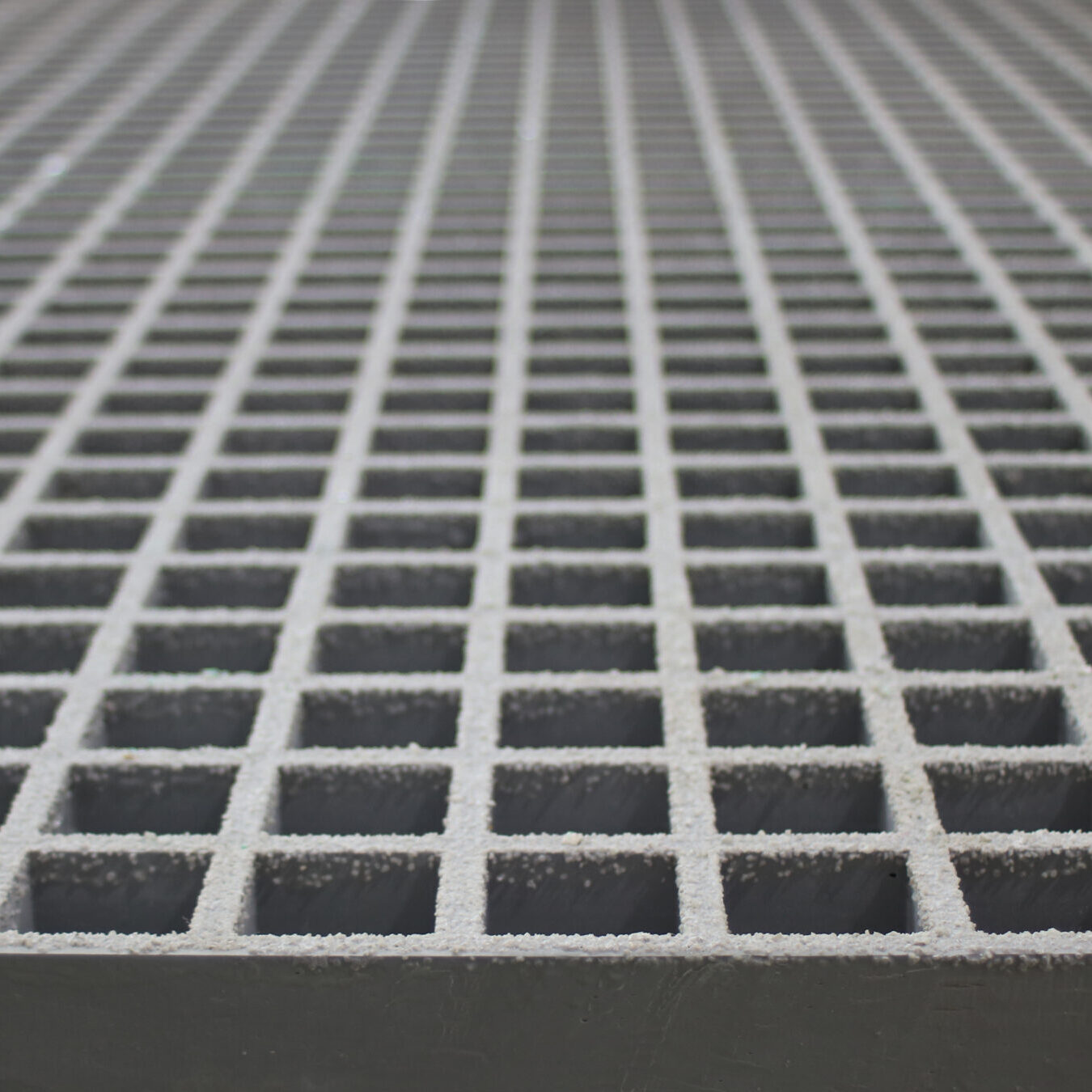

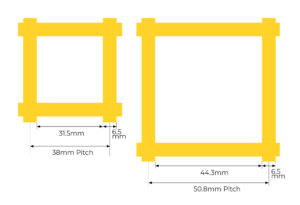

Our Grating can be cut to any size and is finished as standard with a durable and hard-wearing angular quartz grit that provides an excellent level of slip resistance in wet, oily and icy conditions. Standard mesh panels have either a 38mm or 50mm pitch, leaving holes that catch larger items and debris (if there could be pedestrians below your walkway, the smaller holes in Mini Mesh Grating offer greater protection). Our standard mesh stock panels are manufactured using isophthalic resin, providing excellent chemical-resistance. For specialist environments choose Vinyl Ester Grating.

All QuartzGrip? Fibreglass Gratings are manufactured to ISO 9001 quality standards, with a high glass content for superior load-bearing capabilities and corrosion resistance. We offer a wide range of Panel Clips and Clamps to affix our Moulded Gratings to structural profiles and floors. Please visit our fixings page for further details.

Mechanical Data

  • Elastic Modulus 27 GPa
  • Flexural Strength 2.8 GPa
  • Tensile Strength 650 MPa
  • Compressive Strength 90 MPa
  • Dielectric Strength 18 KW/mm
  • Specific Gravity 1.5 ÷ 1.7
  • Thermal Expansion Factor 13 x 10-6 mm/mm °C
  • Water Absorption 0.1% + 0.3% x 24 hours (ISO R62)
  • Operating Temperature -100°C to + 180°C

Physical Data

Grating Depth (mm)

Grating Pitch (mm) Bar Thickness Per 300mm of Width No. of Bars per 300mm % Glass Content Weight (kg/m2) % Open Area

Top

Bottom cm2 cm3 cm4

EL kg/m2

25

38 6.5 5.5 11.5 4.91 6.24 119 8 32 12 69

38

38 6.5 5.5 17.6 10.6 21.38 275 8 32 18.2

69

50

50.8 7.9 6.4 20.1 16.8 42.8 6 32 21.7

71

Manufacturing Tolerances

  • Standard Panel Size = +2mm, -0mm
  • Cut Panel Size = ±3mm
  • Thickness = ±1mm
  • Mesh Pattern = ±0.5mm

Order Code Length (mm) Width (mm) Thickness (mm) Weight (Kg)

Colour

SM-25-20-10-GN-G

1984

997 25 23.93

Green

SM-38-20-10-GY-G

1987

997 38 36.05

Grey

SM-25-30-10-GN-G

3012

997 25 35.35

Green

SM-38-30-10-GY-G

3012

992 38 54.38

Grey

SM-38-36-12-GY-G

3660

1220 38 81.27

Grey

SM-25-36-12-GN-G

3660

1220 25 54.03

Green

SM-25-20-10-GY-G

1984

997 25 23.93

Grey

SM-38-20-10-YE-G

1987

997 38 36.05

Yellow

SM-25-30-10-GY-G

3012

997 25 35.35

Grey

SM-38-30-10-YE-G

3012

992 38 54.38

Yellow

SM-25-36-12-GY-G

3660 1220 25 54.03

Grey

SM-38-36-12-YE-G

3660 1220 38 81.27

Yellow

SM-25-20-10-YE-G

1984

997 25 23.93

Yellow

SM-50-20-10-GN-G

1990 1024 50 44.83

Green

SM-25-30-10-YE-G

3012

997 25 35.35

Yellow
