QuartzGrip® Micro Mesh Grating

QuartzGrip® Micro Mesh Grating

QuartzGrip Logo
  • QUALITY ASSURANCE
  • CHEMICAL RESISTANT
  • SLIP RESISTANT

All the benefits of our Standard Mesh Grating but with tiny 8mm x 8mm holes for maximim debris protection while still allowing water and air to flow freely.

Micro Mesh Grating is usually supplied to order so please allow for a long lead time.

Read full description

This product is currently out of stock and unavailable.

Description

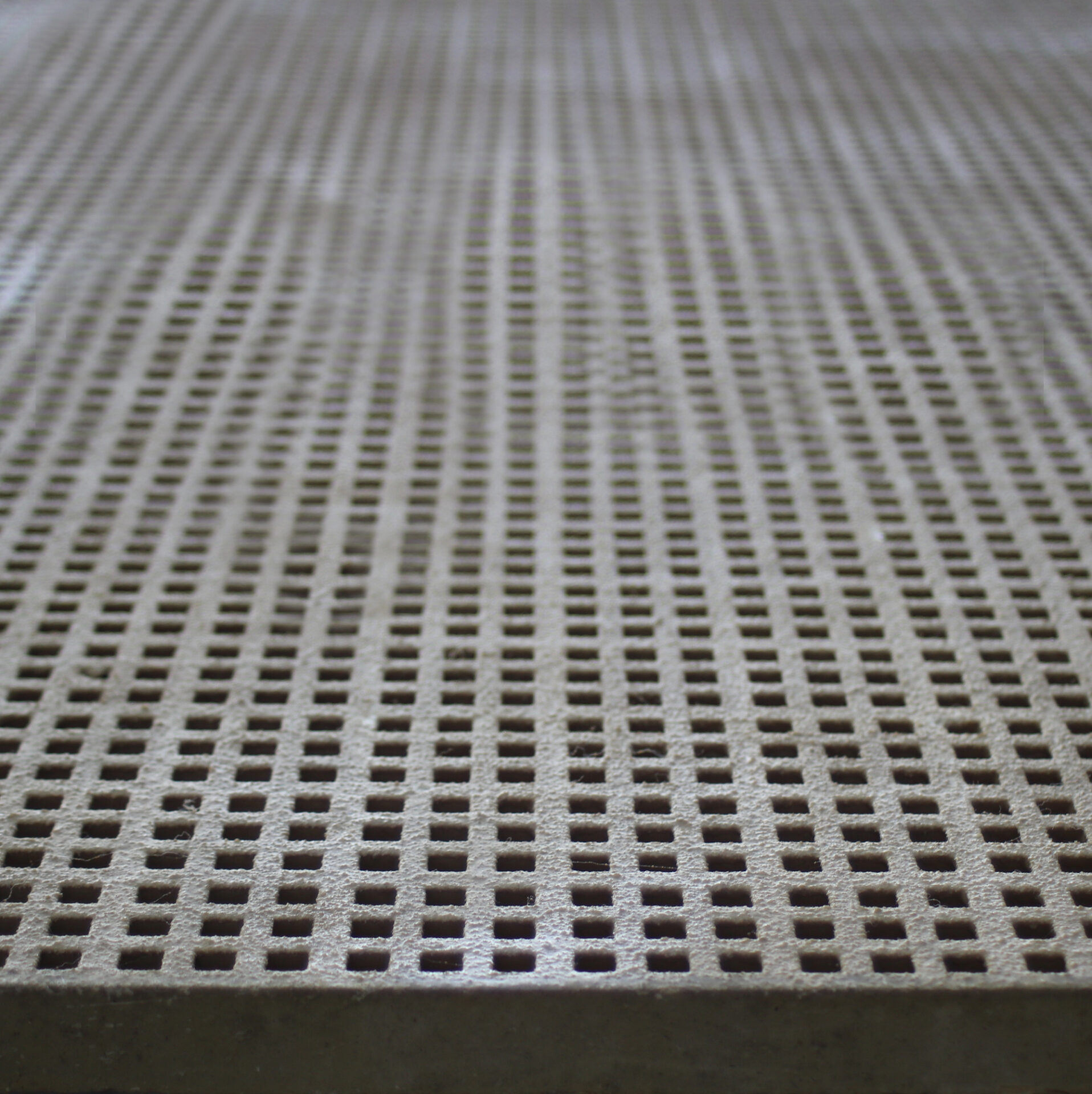

Micro Mesh Anti-Slip GRP Grating has all the benefits of our Standard Mesh Grating but with tiny 8mm x 8mm holes for maximum debris protection while still allowing water and air to flow freely. The smaller hole size not only makes the surface feel even smoother underfoot, it is less likely to cause vertigo if being used over a long drop.

It complies with BS EN14122 Category B and the European 15mm ball falling test requirement. The integral gritted anti-slip surface of our QuartzGrip? Micro Mesh Grating has been tested in accordance with BS 7976-2 (Coefficient of Friction Test).



Mechanical Data

  • Elastic Modulus 27 GPa
  • Flexural Strength 2.8 GPa
  • Tensile Strength 650 MPa
  • Compressive Strength 90 MPa
  • Dielectric Strength 18 KW/mm
  • Specific Gravity 1.5 ÷ 1.7
  • Thermal Expansion Factor 13 x 10-6 mm/mm °C
  • Water Absorption 0.1% + 0.3% x 24 hours (ISO R62)
  • Operating Temperature -100°C to + 180°C

Physical Data

Grating Depth (mm)

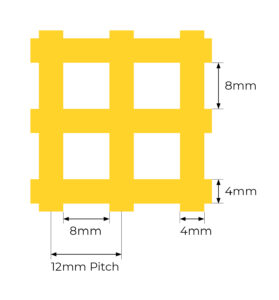

Grating Pitch (mm) Bar Thickness Per 300mm of Width No. of Bars per 300mm % Glass Content Weight (kg/m2) % Open Area

Top

Bottom cm2 cm3 cm4

EL kg/m2

22

12 6 4.8 22 33 16.5 36

30

12 6 5 22 32.5 19.58

36

Manufacturing Tolerances

  • Standard Panel Size = +2mm, -0mm
  • Cut Panel Size = ±3mm
  • Thickness = ±1mm
  • Mesh Pattern = ±0.5mm

Order Code Length (mm) Width (mm) Thickness (mm) Weight (Kg) Colour
MIC-40-12-10-GY-FG 4047 1247 30 83.27 Grey
MIC-30-30-10-GY-FG 3007 1007 30 49.97 Grey
MIC-40-12-10-BE-FG 4047 1247 30 83.27 Beige
MIC-30-30-10-BE-FG 3007 1007 30 49.97 Beige
MIC-22-40-12-GY-FG 4047 1247 22 83.27 Grey
MIC-22-30-10-GY-FG 3007 1007 22 49.97 Grey
MIC-22-40-12-BE-FG 4047 1247 22 83.27 Beige
MIC-22-30-10-BE-FG 3007 1007 22 49.97 Beige
