Universal™ GRP I-Beam Profiles

Universal™ GRP I-Beam Profiles

Universal Logo
  • QUALITY ASSURANCE
  • LIGHTWEIGHT & DURABLE
  • EASY TO INSTALL

Structural GRP Profile suitable for heavily industrial applications due to its extremely high load bearing capabilities.

Read full description

Clear

From £503.23 (exc VAT)

Any questions? Contact us

Description

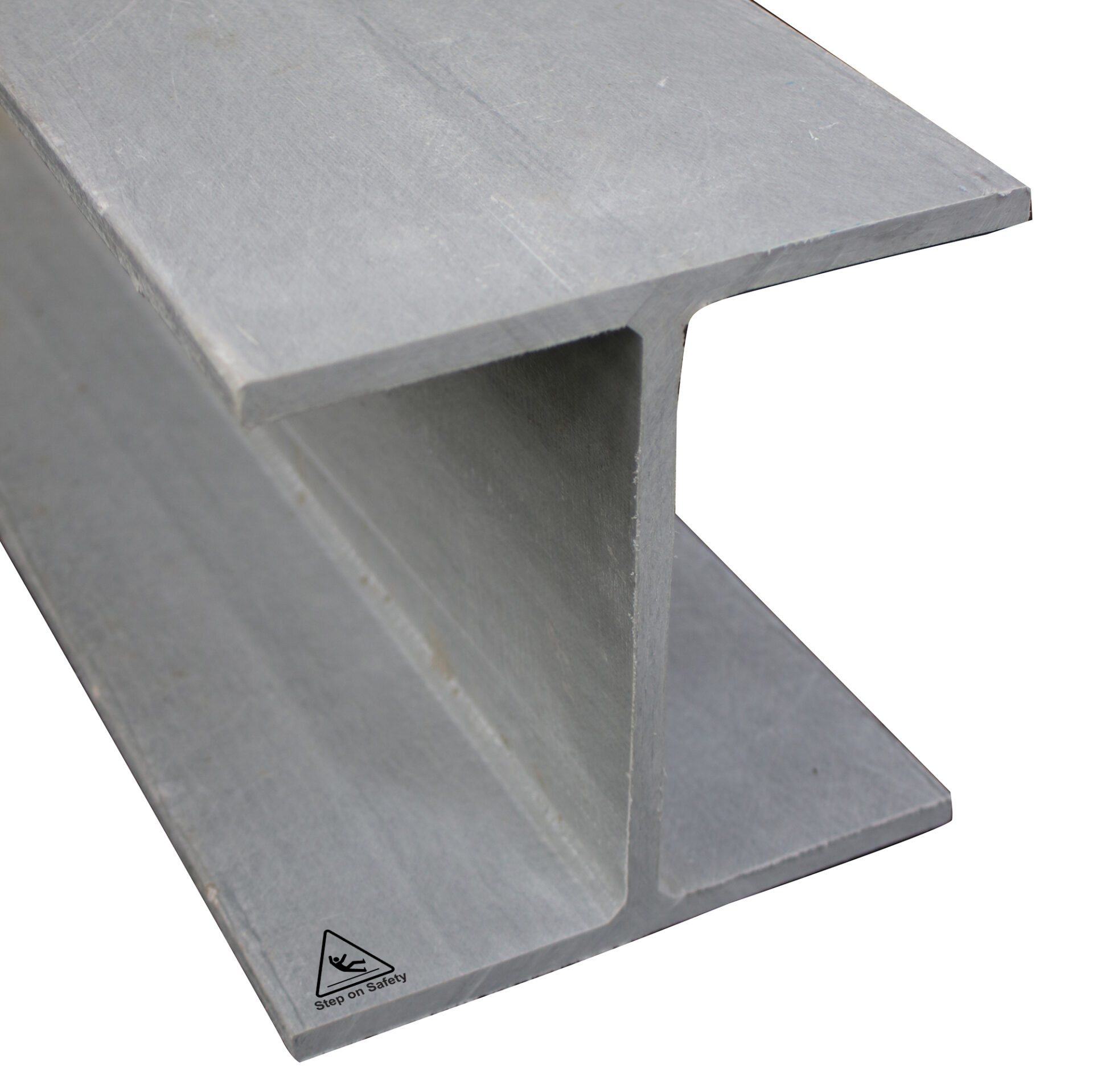

Our GRP I-Beam Structural Profiles are manufactured from glass reinforced isophthalic polyester resin with E glass fibre, suitable for heavily industrial applications due to its extremely high load bearing capabilities. Supplied in 6000mm lengths. We also offer a cutting service – for details click here

  • Exceptional strength: on a weight to weight basis, GRP I-Beams are stronger than structural steel. The excellent impact strength of GRP reduces damage caused by accidental collisions
  • Lightweight: weighing up to 80% less than steel and 30% less than aluminium, GRP profiles provide equivalent performance for considerably less weight
  • Corrosion resistant: GRP is generally unaffected by exposure to a wide variety of corrosive chemicals and environments. A synthetic surface veil is applied, to provide a resin rich layer, thereby enhancing the already excellent corrosion resistant properties
  • Maintenance-free: the corrosion resistant properties of our structural profiles remove the necessity of periodic painting or surface treatment
  • Low thermal conductivity: all of our GRP I-Beam profiles have a low thermal conductivity. For example they are around 1/250 of aluminium, and 1/60 of steel
  • Non-conductive: FRP is electrically non-conductive, making its specification ideal for cable trays, ladders, cover boards etc.
  • Electromagnetic transparency: GRP I-Beam profiles are transparent to radio-waves, microwaves and other electromagnetic frequencies so they are ideal for aerial masts and radar applications
  • Dimensional stability: GRP is resistant to stretching, warping, or swelling over a wide range of temperatures and physical stresses
  • Thermal stability: GRP Beams are capable of withstanding continuous exposure to temperatures of up to 65 degrees C

For the load and deflection data you’ll find our downloadable datasheet here.

Physical Data

Dimensions

Colour

Kg/lm

Kg/6m Length

200 x 100 x 9.5mm

Grey

7.20

43.20

200 x 200 x 10mm

Grey

11.02

66.12
