Standard Step Overs

Standard Step Overs

For a fast, fuss-free solution we can build a Standard Step Over and supply it for you to install. We offer a range of spans and heights; simply measure the obstacle and select the model that will clear it. Made to order, delivery is normally within three weeks.

Read full description

From £1,462.93 (exc VAT)

Any questions? Contact us

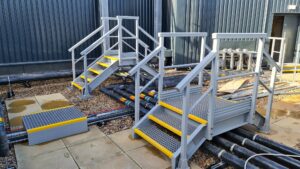

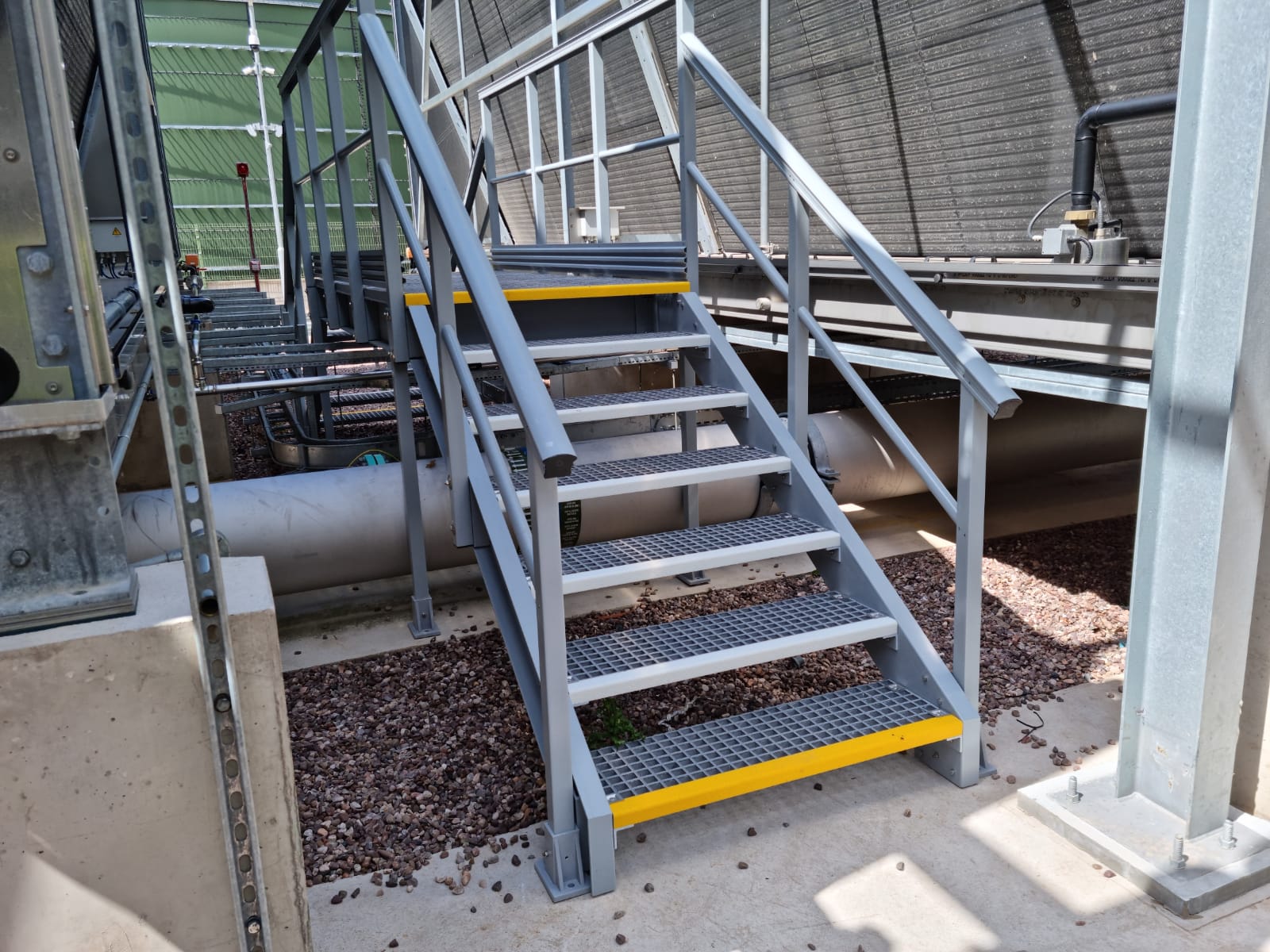

A Step Over not only reduces trips, slip and falls, it prevents walls, pipes, ducts and cables from being damaged. For a simple access solution, choose one of our Standard Step Overs and we’ll supply it fully fabricated and ready for you to install. We offer a range of sizes designed to clear obstacles up to 1000mm high with a span of up to 1500mm. Our Standard Step Overs are constructed using Universal GRP Profiles, 38mm grey QuartzGrip® Open Mesh Grating and continuous grey SafeRail handrail on both sides.

  • Treads are made using 38mm grey GRP Anti-Slip Open Mesh Grating with hi-vis yellow nosing
  • Platforms are built from 38mm GRP Anti-Slip Open Mesh Grating with a SWL of 5kN/m2
  • Continuous handrail on both sides has Kick Plate on the platform to prevent items falling or rolling off
  • Supplied fully fabricated – we can break it down into sections to make it easier to lift if required
  • Steps and Platform are 800mm wide
  • Long-lasting GRP will never rot or corrode and requires zero maintenance
  • Chemical resistant, non-conductive and low noise
  • Ideal for roof top use – GRP is lighter than steel equivalents
  • To install, simply bolt the feet to the floor using the fixings provided

If you’d prefer a bespoke size or colour, or need us to install the Step Over for you please get in touch or use our calculator to explore other size options.

We have teamed up with NBS Source to make it easy to specify our GRP Step Overs – find out more here.

Span and height refer to the space below the Step Over; choose the size that will easily clear the obstacle you need to traverse. Overall dimensions indicate the total space required for the structure. Please ensure there is space at each end to allow easy access to the steps and that there is enough headroom above the platform for people to walk across.

Span Height Overall Length Overall Height Overall Width Weight
SO-05-05-GY 538mm 500mm 2190mm 1840mm 975mm 120kg
SO-10-05-GY 1033mm 500mm 2685mm 1840mm 975mm 133kg
SO-15-05-GY 1500mm 500mm 3180mm 1840mm 975mm 155kg
SO-05-10-GY 538mm 1000mm 3560mm 2338mm 975mm 230kg
SO-10-10-GY 1033mm 1000mm 4060mm 2338mm 975mm 250kg
SO-15-10-GY 1500mm 1000mm 4950mm 2338mm 975mm 270kg
