QuartzGrip® Conductive Open Mesh Grating

QuartzGrip® Conductive Open Mesh Grating

QuartzGrip Logo
  • SAFELY DISCHARGE STATIC
  • LOW-MAINTENANCE
  • SLIP RESISTANT

For use on roof walkways of high buildings as a defence against lightening strikes and in environments where flammable gases or fumes could be ignited by static sparks.

Read full description

Clear

From £232.89 (exc VAT)

Any questions? Contact us

Description

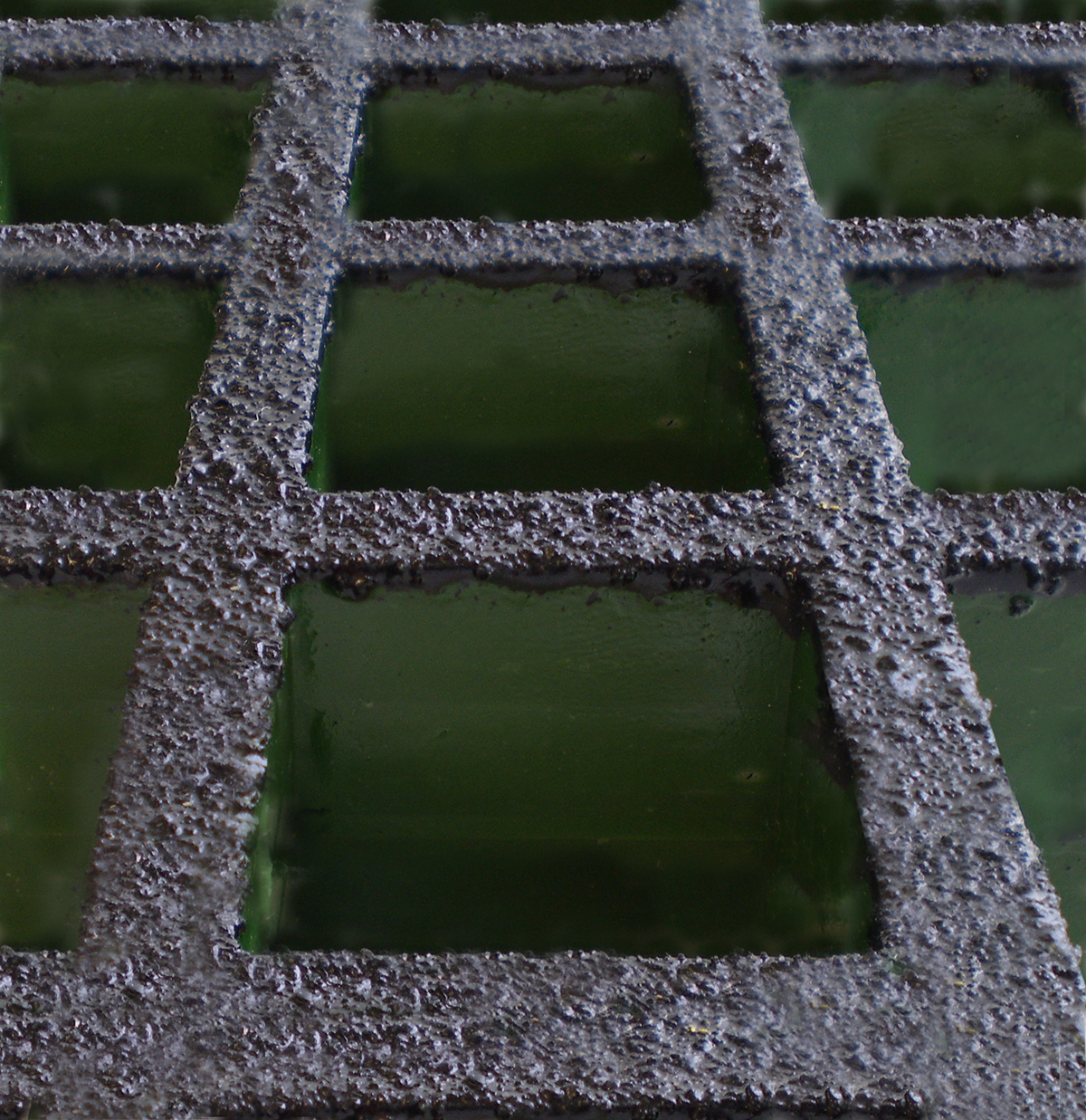

Our standard range of GRP gratings are all non-conductive. Conductive grating has a secondarily applied conductive surface which, when properly grounded with copper earthing straps, drains off the build-up of unwanted, potentially dangerous static electricity. This highly specialised grating produces an electrical resistance of less than 26 kilo ohms per 300mm, while the grating retains all of the other desirable characteristics of conventional glass reinforced plastic (GRP) grating. It is typically used on roof walkways of high buildings as a defence against lightening strikes and in environments where static sparks could cause problems, such as:

  • High-tech industries where static electricity can damage chips, laser discs etc
  • Facilities where explosive-proof components are specified
  • Dry environments where static sparks can endanger personnel
  • Other high hazard environments, where gases, solids or flammable liquids could be ignited by a static spark

QuartzGrip® Conductive GRP Grating maintains all the benefits of standard fibre glass grating: low-maintenance, lightweight, long-lasting, slip and corrosion-resistance.

Additional information

Dimensions N/A
Mesh Thickness

25mm, 38mm

Sheet Size

3012 x 997mm, 3660 x 1220mm

Reviews

There are no reviews yet.

Be the first to review “QuartzGrip® Conductive Open Mesh Grating”

Your email address will not be published. Required fields are marked *

Mechanical Data

  • Elastic Modulus 27 GPa
  • Flexural Strength 2.8 GPa
  • Tensile Strength 650 MPa
  • Compressive Strength 90 MPa
  • Dielectric Strength 18 KW/mm
  • Specific Gravity 1.5 ÷ 1.7
  • Thermal Expansion Factor 13 x 10-6 mm/mm °C
  • Water Absorption 0.1% + 0.3% x 24 hours (ISO R62)
  • Operating Temperature -100°C to + 180°C

Physical Data

Grating Depth (mm)

Grating Pitch (mm) Bar Thickness Per 300mm of Width No. of Bars per 300mm % Glass Content Weight (kg/m2) % Open Area

Top

Bottom cm2 cm3 cm4

EL kg/m2

25

38 6.5 5.5 11.5 4.91 6.24 119 8 32 12 69

38

38 6.5 5.5 17.6 10.6 21.38 275 8 32 18.2

69

50

50.8 7.9 6.4 20.1 16.8 42.8 6 32 21.7

71

Manufacturing Tolerances

  • Standard Panel Size = +2mm, -0mm
  • Cut Panel Size = ±3mm
  • Thickness = ±1mm
  • Mesh Pattern = ±0.5mm
